Protable Ultrasound Scanner with convex probe SG5600

Product Categories
SG Medical Devices company
Contact Now

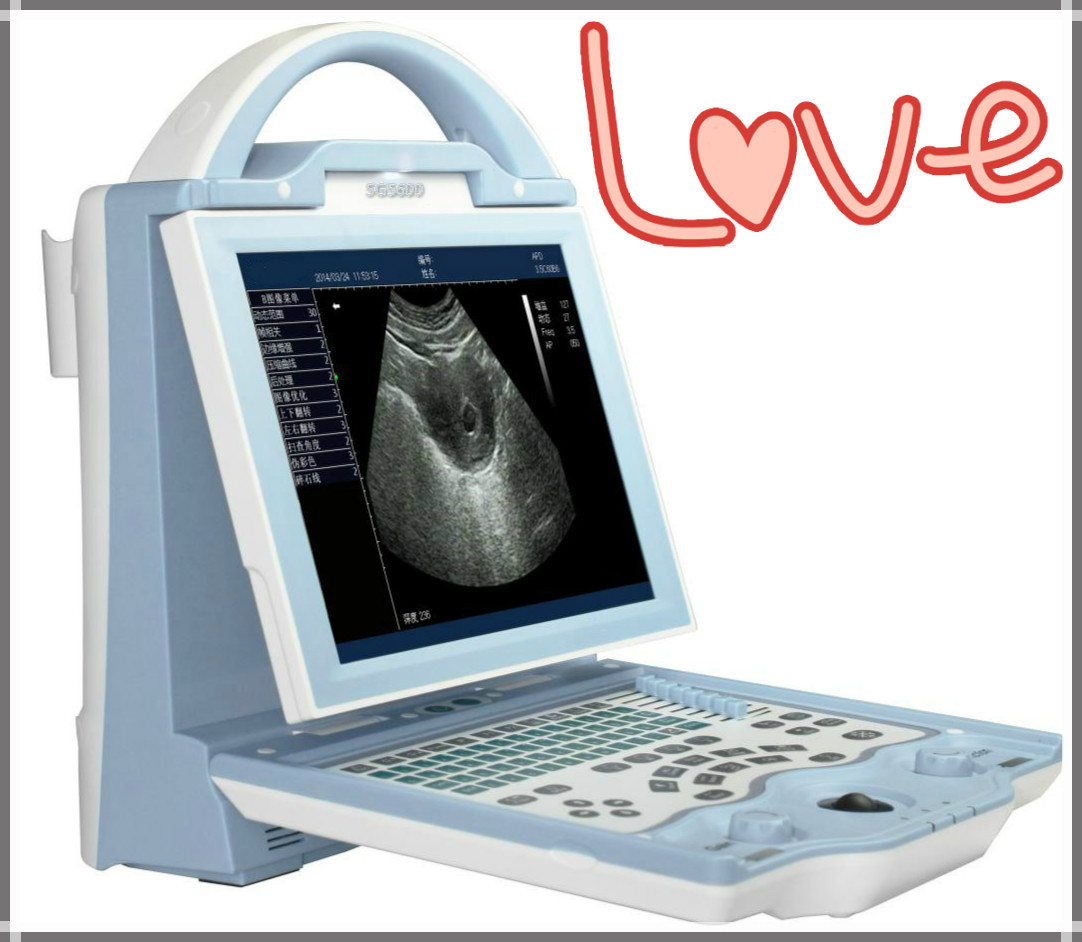

Protable Ultrasound Scanner with convex probe SG5600

Place of Origin : China

Brand Name : SG

Certification : CE/ISO

Model Number : SG5600

10.4' high resolution color LED backlight display, : high contrast and wide viewing angle

Two probe sockets, auto-identify different optional probe : Adopt ARM7 embedded control system +FPGA signal processing system + well selected ultrasound hardwar

Body marks：total 64 kinds body marks indicating probe position : Display mode：B、2B、4B 、B/M、M

Adjustable depth : 10 grades, max depth to 236mm

Contrast：27～90dB : Gray scale：256

8 steps intelligent TGC : 8 kinds pseudo colors

Frame frequency : 30 frames /second

Cine loop : 256 frames

Power supply adaptor output：DC12.8V 3.0A : The gravel software package with real-time position line measurement

Main basic configuration : 3.5MHz convex probe

Optional probe 1 : 6.5MHz multi-frequency trans-vaginal probe

Optional probe 2 : 7.5MHz multi-frequency linear probe

MOQ : 1pcs

Packaging Details : box

Delivery Time : 2 weeks

Payment Terms : T/T

Supply Ability : 500pcs/month

Contact Now

Protable Ultrasound Scanner with convex probe SG5600

Feature:

10.4' high resolution color LED backlight display, with high contrast and wide viewing angle

Protable Ultrasound Scanner with convex probe SG5600 Adopt ARM7 embedded control system +FPGA signal processing system + well selected ultrasound hardware system, all make the unit more stable
Protable Ultrasound Scanner with convex probe SG5600 Menu operation system, with different languages according to requirement including Spanish, English, French, Russian and Portuguese
Protable Ultrasound Scanner with convex probe SG5600 Two probe sockets, auto-identify different optional probe
Protable Ultrasound Scanner with convex probe SG5600 Body marks:total 64 kinds body marks indicating probe position
Protable Ultrasound Scanner with convex probe SG5600 Display mode:B,2B,4B ,B/M,M
Protable Ultrasound Scanner with convex probe SG5600 Adjustable depth: 10 grades, max depth to 236mm
Protable Ultrasound Scanner with convex probe SG5600 Contrast:27～90dB
Protable Ultrasound Scanner with convex probe SG5600 Gray scale:256
Protable Ultrasound Scanner with convex probe SG5600 8 steps intelligent TGC
Protable Ultrasound Scanner with convex probe SG5600 Frame frequency: 30 frames /second
Protable Ultrasound Scanner with convex probe SG5600 8 kinds pseudo colors
Protable Ultrasound Scanner with convex probe SG5600 Image storage: 4G hard disk to permanently store about 5000 frames images；without loss when power off
Protable Ultrasound Scanner with convex probe SG5600 Cine loop:256 frames
Protable Ultrasound Scanner with convex probe SG5600 Puncture guide function with 2 correctable puncture guiding lines(adjustable angle & position)
Protable Ultrasound Scanner with convex probe SG5600 The gravel software package with real-time position line measurement
Protable Ultrasound Scanner with convex probe SG5600 Normal measurement: distance,perimeter, area, volume, angle, length and area stenosis ratio measurement
Protable Ultrasound Scanner with convex probe SG5600 OB measurement including: 15 kind of obstetric software, several GA measurement, amniotic fluid index ,fetal growth curve and OB report
Protable Ultrasound Scanner with convex probe SG5600 Urology measurement and analysis: residual urine volumem, prostate volume, and urology report
Protable Ultrasound Scanner with convex probe SG5600 Dual TV output: PAL/NTSC, can connect video printer when necessary
Protable Ultrasound Scanner with convex probe SG5600 Power supply:100-240V～ 1.2-0.6A frequency:50-60Hz
Protable Ultrasound Scanner with convex probe SG5600 Power supply adaptor output:DC12.8V 3.0A
Protable Ultrasound Scanner with convex probe SG5600 Main unit weight:4.5kg(without accessories)
Protable Ultrasound Scanner with convex probe SG5600 Main unit dimension:256×150×326mm(L×W×H)

Main basic configuration:

1. Main unit
2. 3.5MHz convex probe

Optional parts:

1. 6.5MHz multi-frequency trans-vaginal probe
2. 7.5MHz multi-frequency linear probe
3. Li-battery
4. Trolley
5. Charger

Protable Ultrasound Scanner with convex probe SG5600


China Protable Ultrasound Scanner with convex probe SG5600 wholesale

Protable Ultrasound Scanner with convex probe SG5600 Images
