Full digital B mode ultrasonic diagnostic instrument SG2000G
Feature:
10" high resolution CRT monitor, progressive scanning without sparkle.
Double probe sockets, support several optional probes.
Menu operation, support 5 customized languages: English, Spanish, Russian, French, and Portuguese.
10 grades depth adjustment, maximum display depth is 236mm.
100 frames permanent storage, 256 frames cine loop.
light touch keyboard, photoelectric trackball and encoder, easy to operate.
Dual-mode TV output:ＰＡＬ/ＮＴＳＣ, connecting to thermal printer and ultrasonic working station.
General measurement:distance,perimeter, area , volume, heart rate, GA, EFW, EDD.
Obstetric measurement and analysis: 15 kind of obstetric tables, LMP input, etc. several GA measurements, amniotic fluid index, fetal growth curve and OB report.
| Parameter: |
| |  Adopt ARM7 Embedded Control Systems, FPGA signal processing system and specially selected ultrasonic hardware system, making the machine more reliable.
10" high resolution CRT monitor, line by line scanning without sparkle.
Menu operation, support 5 customized languages: English, Spanish, Russian, French, and Portuguese.
Double probe sockets, automatically identify the probe, support several optional probes.
Body mark: 64 pcs of body marks with probe position.
Display mode:B,2B,4B ,B/M,M, total 5 kinds.
10 grades depth adjustment, maximum display depth is 236mm.
Gain range: 0~127dB.
Dynamic range: 27~90dB.
Gray:256.
Intelligent TGC control: 8 grades.
Frame frequency: 30 frames /second.
Pseudo-color: 8 kinds (incl. B/W).
Equipped with lithotripsy software, realize real-time positioning measurement.
General measurement:distance,perimeter, area, volume, angle, length and area stenosis ratio measurement.
Obstetric measurement and analysis: 15 kind of obstetric tables, LMP input, etc. several GA measurements, amniotic fluid index, fetal growth curve and OB report.
Gynecology measurement and analysis: gynecology general measurement and gynecology report.
Urology measurement and analysis: residual urine volume, prostate volume, and urology report.
Two USB ports support large capacity USB disk (support document management/software upgrades/one-key storage), and color laser printer directly print various image and reports.
Dual-mode TV output:ＰＡＬ/ＮＴＳＣ, connecting to thermal printer and ultrasonic working station.
Power supply: AC110/230-15% ~ + 10% (self-adaptation supply voltage) 60/50 hz ± 1 hz.
Net weight:12kg.
Main unit size: 387 x 319 x 270 mm (length x width x height). |
 Standard configuration: |
| | Main unit: 1 pc.
10" high resolution CRT monitor.
Double probe sockets, automatically identify probe technology.
3.5MHz multi-frequency abdomen convex probe: 1 pc. |
| Optional configuration: |
| | Probe
6.5MHz multi-frequency trans-vaginal probe
5.0MHz multi-frequency micro-convex pediatrics probe
7.5MHz multi-frequency high linear probe
Trolley
Thermal printer (P93W-S)
Color LCD monitor |
|
|

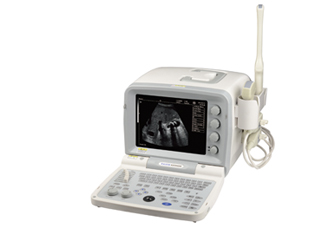

Full digital B mode ultrasonic diagnostic instrument SG2000G Images
|
